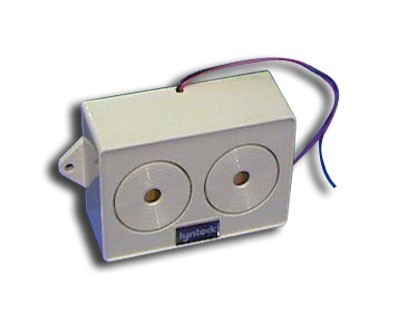

Newbietexecom24 Posted July 30, 2016 Share Posted July 30, 2016 Hi guys, Thanks to many of you on here, I'm slowly getting to understand the system and have been playing around with it's settings to match it to our needs. One of the things I don't like about the texecom premier elite 24 is how quiet it's panel's internal speaker is. So I've bought a Twin Piezo Sound Bomb from Alert Electrical:- I've connected the red wire to the panel's 12v bell and the black wire to the panel speaker's -ve However it still sounds really quiet and I'm wondering if I've wired it correctly. Could anyone please confirm if this is correct and if so, how can I test that it's working correctly? Thanks again Quote Link to comment Share on other sites More sharing options...
Rulland Posted July 30, 2016 Share Posted July 30, 2016 (edited) Speaker input is millivolts, soundbomb's is 12 volts-see the problem?. Where on the system does one get a 12v output under alarm conditions?. I'm assuming you are after louder alarms sounds during an activation of the system and not louder entry/exit tones. Edited July 30, 2016 by Rulland Quote Link to comment Share on other sites More sharing options...
MrHappy Posted July 30, 2016 Share Posted July 30, 2016 1 hour ago, Newbietexecom24 said: Could anyone please confirm if this is correct and if so, how can I test that it's working correctly? wants to be an switched out & not the speaker one... test- remove battery from panel touch the red wire to the red terminal & the black wire to the black termial Quote Mr Veritas God Link to comment Share on other sites More sharing options...
Newbietexecom24 Posted July 30, 2016 Author Share Posted July 30, 2016 My apologies, but I'm not exactly sure what and where you want me to connect the wires to. Also I'm not sure where the system gets 12v output under alarm conditions. Quote Link to comment Share on other sites More sharing options...
james.wilson Posted July 30, 2016 Share Posted July 30, 2016 the bell trigger Quote securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
Newbietexecom24 Posted July 30, 2016 Author Share Posted July 30, 2016 The current sound bomb wiring connections are as the image shows below, i.e. RED going to BELL +12V and BLACK going to SPK-. Please note that this image is just an example off the internet and is not my actual alarm, but it's the same layout. So have I done it wrong? Quote Link to comment Share on other sites More sharing options...
james.wilson Posted July 30, 2016 Share Posted July 30, 2016 spk- is for a speaker not a sounder it needs to go to whatever is bell - Quote securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
Newbietexecom24 Posted July 30, 2016 Author Share Posted July 30, 2016 So for bell - I think that is 0V (next to Strobe) ???? Quote Link to comment Share on other sites More sharing options...
Rulland Posted July 30, 2016 Share Posted July 30, 2016 Nope, 0v is the sounder hold off -ve, you need red from bomb to +12v and black from bomb to bell (which puts a -ve to both bomb and bell when in alarm condition. The bell already has a +ve connected internally at the sounder. Quote Link to comment Share on other sites More sharing options...
