Where do the resistors go please?

Recommended Posts

Hi all,



So recently bought some of these Bosch Blue Line Gen 2 PIRs ...but the instructions mention nothing about the EOL resistors.



Pelase could someone confirm across which terminals they should be placed?  (2k2 and 4k7)








sRdOWLJ.jpg?1







Thanks

Edited by virdi

Share this post


Link to post
Share on other sites
3 hours ago, james.wilson said:

4k7 across the 2 x nc

2k2 between nc and t

Cabled , So one core into the single end 4k7 and other core Into the other t terminal by itself





Share this post


Link to post
Share on other sites

It depends on the panel not the detector its the panel instructions you need to read not the detectors.The panel is looking for a resistance coming back and it depends on which panel as to what resistance

  • Upvote 2

Share this post


Link to post
Share on other sites

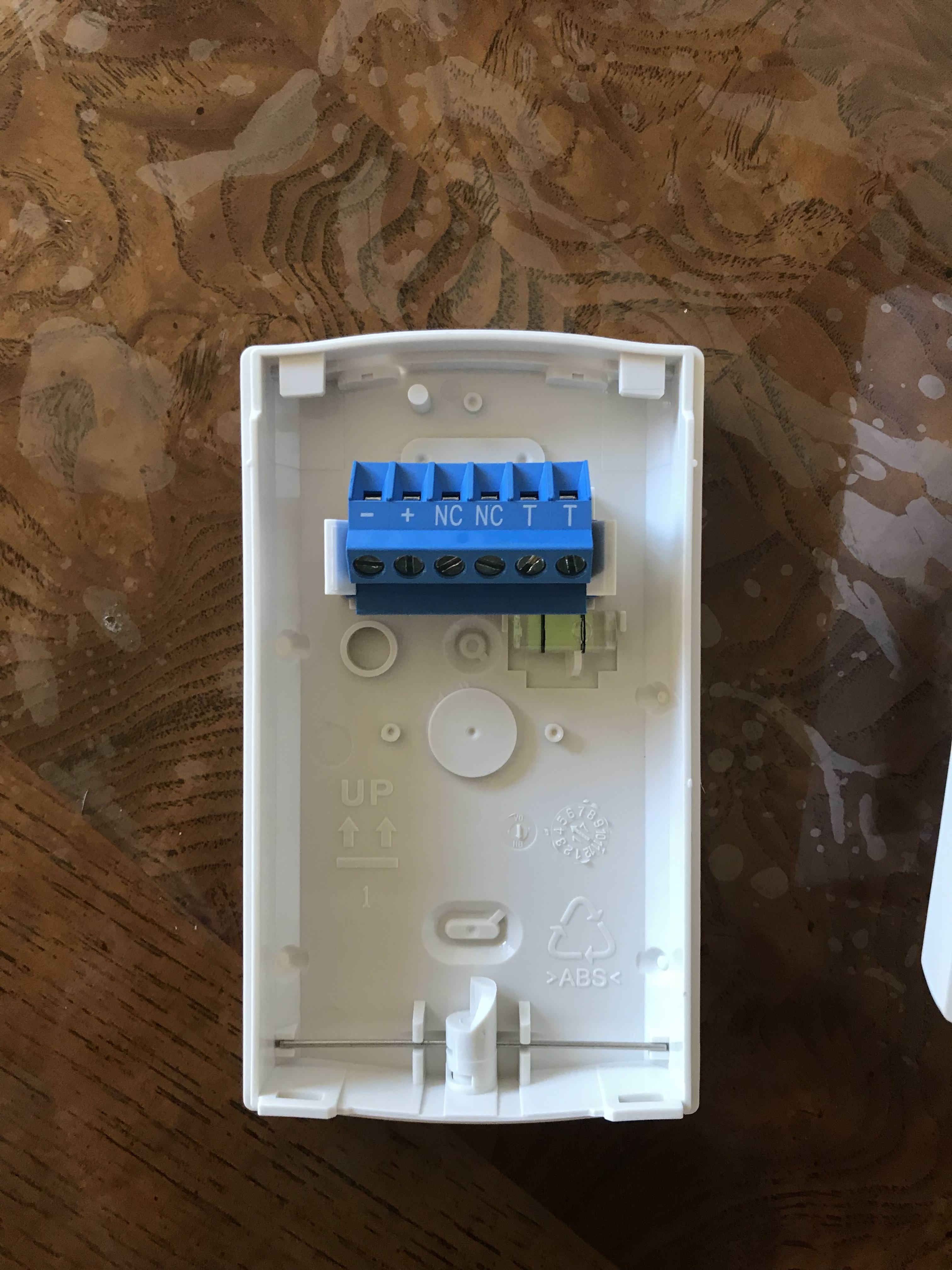

Im guessing that its a Texicom panel which requires the connections as per image.



Edited by HaddonEast

Share this post


Link to post
Share on other sites
On 19/01/2018 at 21:16, PeterJames said:

It depends on the panel not the detector its the panel instructions you need to read not the detectors.The panel is looking for a resistance coming back and it depends on which panel as to what resistance

But he already knows the resistors he wants to know how to fit them

Share this post


Link to post
Share on other sites
23 minutes ago, al-yeti said:

But he already knows the resistors he wants to know how to fit them

Yes but without knowing which panel how are we supposed to tell him. Its a bit like asking whats the quickest way to get to London without saying where I am. You can assume I'm in Brighton but you just dont know for sure. You can assume that he has a Texe because of the value but to assume makes an ass out of u and me.

Share this post


Link to post
Share on other sites
27 minutes ago, PeterJames said:

Yes but without knowing which panel how are we supposed to tell him. Its a bit like asking whats the quickest way to get to London without saying where I am. You can assume I'm in Brighton but you just dont know for sure. You can assume that he has a Texe because of the value but to assume makes an ass out of u and me.

You need android to do it for you

Share this post


Link to post
Share on other sites
