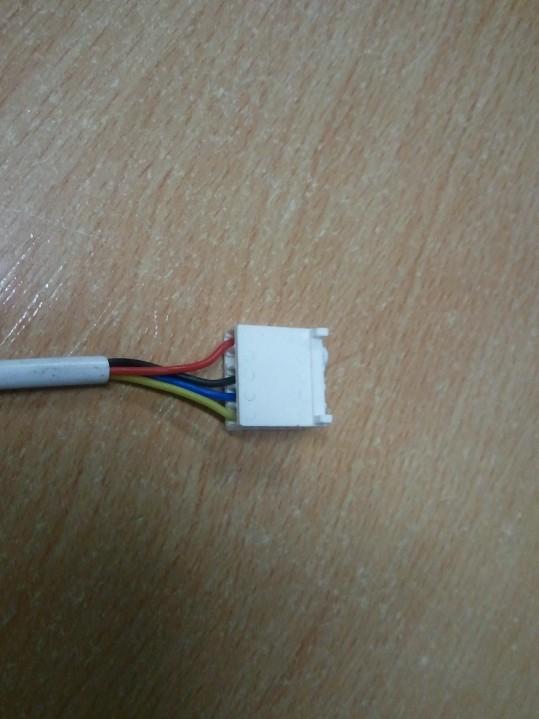

I need some 5 way connectors like the attached to soldier up a lead





I've had a quick scan of maplins, fleabay ect.... but can't see the correct type.



Have any you chap got link?



FYI connector is the same used for modem lead on texecom prem....





Search for 5 pin molex (who comes up with these names?) and you should be able to find one (they have different spacing like 0.1 etc)

Doh, was trying to reply and was not signed in!!





http://www.molex.com/molex/products/group?key=power_connectors&channel=PRODUCTS



Even in the books of words they mention "Molex"

Got the crimps pin and plugs from RS

crimps 210 5012

pins 467 598

4w housing 296 4956



HTH

Thats a 5 way but one unused

Thats a 5 way but one unused



I did notice but a little busy so just pointed mr happy in the right direction (if he likes RS that is)



There alway one !! LOL

Edited November 30, 201213 yr by Barsnake

One unused port?



:P



Fair play RS have them, I bow to your production of product numbers.



thanks guy's, the RS no.s are declared the winner



I think "molex" is a manufactures name ?



I'd call the stu/ digi footprint pins "molex pins" (but then again it just might be me being odd)



Earlier I tried "5 pins molex pin connector" in fleabay & it found lots of HDD power type connectors !

5 way with one unused is correct on our leads.

CPC Farnell Part numbers for those without RS account.



5 Way KK Connectors





CN01236



CN09629
