Carlos12 Posted January 18, 2019 Share Posted January 18, 2019 (edited) Hello, I'm helping a neighbour with an existing installation, the wires have been ripped out of the bellbox, I've connected the siren, however I'm struggling to locate the other wires. I've attached PCB wires to help conversion. Would anyone be able to assist? I've connected as best I can and I receive 'bell tamper' error however tried resetting through engineers menu and it's not working, therefore I believe it's wired wrong. Please help. From 'BELL' Feed: Black -C2 Green - NC2 Yellow - TR Red - 12V Blue - 0V -- Not connected: White Orange Brown Images here: https://imgur.com/a/F0P95ub Would this work? http://www.moretonalarms.com/pdf_downloads/Bellbox_Wiring_MAS.pdf AG6 Honeywell. Edited January 18, 2019 by Carlos12 Quote Link to comment Share on other sites More sharing options...
al-yeti Posted January 18, 2019 Share Posted January 18, 2019 3 hours ago, Carlos12 said: Hello, I'm helping a neighbour with an existing installation, the wires have been ripped out of the bellbox, I've connected the siren, however I'm struggling to locate the other wires. I've attached PCB wires to help conversion. Would anyone be able to assist? I've connected as best I can and I receive 'bell tamper' error however tried resetting through engineers menu and it's not working, therefore I believe it's wired wrong. Please help. From 'BELL' Feed: Black -C2 Green - NC2 Yellow - TR Red - 12V Blue - 0V -- Not connected: White Orange Brown Images here: https://imgur.com/a/F0P95ub Would this work? http://www.moretonalarms.com/pdf_downloads/Bellbox_Wiring_MAS.pdf AG6 Honeywell. You mean it's a scantronic alarm and wiring to an ag6? 1 Quote Link to comment Share on other sites More sharing options...
Carlos12 Posted January 18, 2019 Author Share Posted January 18, 2019 Correct. Quote Link to comment Share on other sites More sharing options...
al-yeti Posted January 18, 2019 Share Posted January 18, 2019 9 minutes ago, Carlos12 said: Correct. What scanny? 1 Quote Link to comment Share on other sites More sharing options...
Mad Man Dyson Posted January 18, 2019 Share Posted January 18, 2019 By any chance is an ION Panel you have ? If so which model? 1 Quote Link to comment Share on other sites More sharing options...
Carlos12 Posted January 18, 2019 Author Share Posted January 18, 2019 Scantronic 9751 - https://www.amazon.co.uk/Scantronic-9751-EN-Alarm-Panel/dp/B006WVMGAI Quote Link to comment Share on other sites More sharing options...

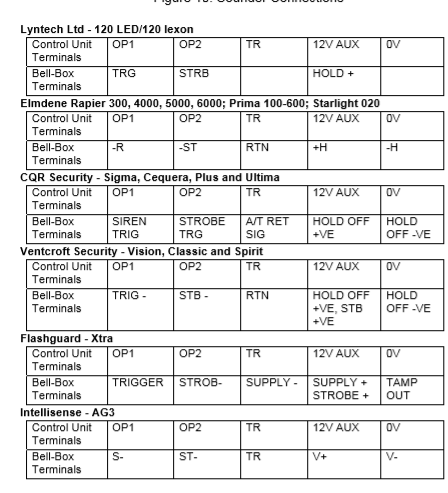

Mad Man Dyson Posted January 18, 2019 Share Posted January 18, 2019 1 Quote Link to comment Share on other sites More sharing options...
Carlos12 Posted January 18, 2019 Author Share Posted January 18, 2019 2 minutes ago, Mad Man Dyson said: Bell box V+ red V - blue Sw black St greenR yellow Then? Thanks!! Quote Link to comment Share on other sites More sharing options...
al-yeti Posted January 18, 2019 Share Posted January 18, 2019 16 minutes ago, Mad Man Dyson said: By any chance is an ION Panel you have ? If so which model? Unlikely with that PCB pic 1 Quote Link to comment Share on other sites More sharing options...
Mad Man Dyson Posted January 18, 2019 Share Posted January 18, 2019 2 minutes ago, al-yeti said: Unlikely with that PCB pic I do appolagise, Its along time since i've worked on a Scanny! Actually @Carlos12, I'd be more looking at replacing the sounder, looks as though the actual piezo siren is missing from the bell box itself ! 1 Quote Link to comment Share on other sites More sharing options...
