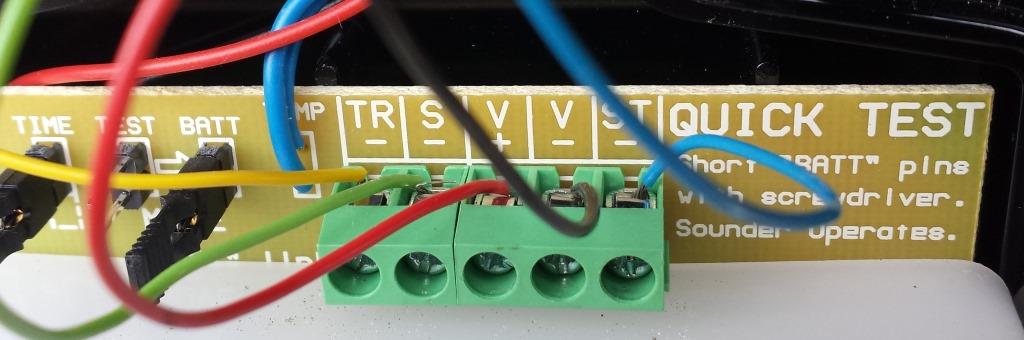

Lee831xx Posted June 22, 2016 Share Posted June 22, 2016 Good Day to you Gents, In a bid to save money, I decided to repair my home alarm system and replace the exterior bell sounder. Having done a bit of research, I wired the new Honeywell AG6 Bell system up as indicated in the picture attached, however I am now unable to set the alarm as the 350 Panel LED indicates "tamper". Could any of you please you have a look at the wiring to see where I have gone wrong and offer any advice? I have attached a picture of the old bell box wiring setup which I took prior to removal. On the AG6 bell I have not wired in the white New Honeywell AG6 Wiring Yellow TR- Green S- Red V+ Black V- Blue ST- White Not Connected Old Bell system Wiring Yellow 12V- Green F TMP Feed Red 12V+ Black S- Bell SW- Blue Strobe - White Strobe + Quote Link to comment Share on other sites More sharing options...
PeterJames Posted June 22, 2016 Share Posted June 22, 2016 You need to show a pic of how its wired into the panel along with the new bell, the old bell wiring is irrelevant Quote Link to comment Share on other sites More sharing options...
MrHappy Posted June 22, 2016 Share Posted June 22, 2016 original bell would have never work correctly (tamper return) new is wired in different colours to the old bell advice ? wire it up to match the controls.... Quote Mr Veritas God Link to comment Share on other sites More sharing options...
ispy Posted June 25, 2016 Share Posted June 25, 2016 your new bell is incorrectly wired, try again, its to do with the green, black and yellow i believe, and don't forget your ear plugs Quote ve hav ze nolij or if not we ask!!!! Link to comment Share on other sites More sharing options...
