AndyAlarms Posted November 14, 2014 Share Posted November 14, 2014 Thanks for the replies Sorry my second question was abit misleading haha When the primary path fails (pstn) its has to be on a zone so the alarm is then in fault right?? And then if both paths fail a second zone is set up to create a fault?? G2- primary path fail G3- both paths fail Or am i making this up??? Sorry not pstn gprs/gsm Quote Link to comment Share on other sites More sharing options...
james.wilson Posted November 15, 2014 Author Share Posted November 15, 2014 As long as you display path fail its ok, the grade is irrelevant Quote securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
Amps Posted November 15, 2014 Share Posted November 15, 2014 I thought for G2 regardless of which path had failed the panel just needs to show that there is a fault. For G3 it must show which path is at fault. Quote Link to comment Share on other sites More sharing options...
AndyAlarms Posted November 15, 2014 Share Posted November 15, 2014 Thank you Quote Link to comment Share on other sites More sharing options...
jiml Posted November 15, 2014 Share Posted November 15, 2014 Check out BSIA Form 175 for a way of monitoring single / all path fail via the single line fail input. Quote Link to comment Share on other sites More sharing options...

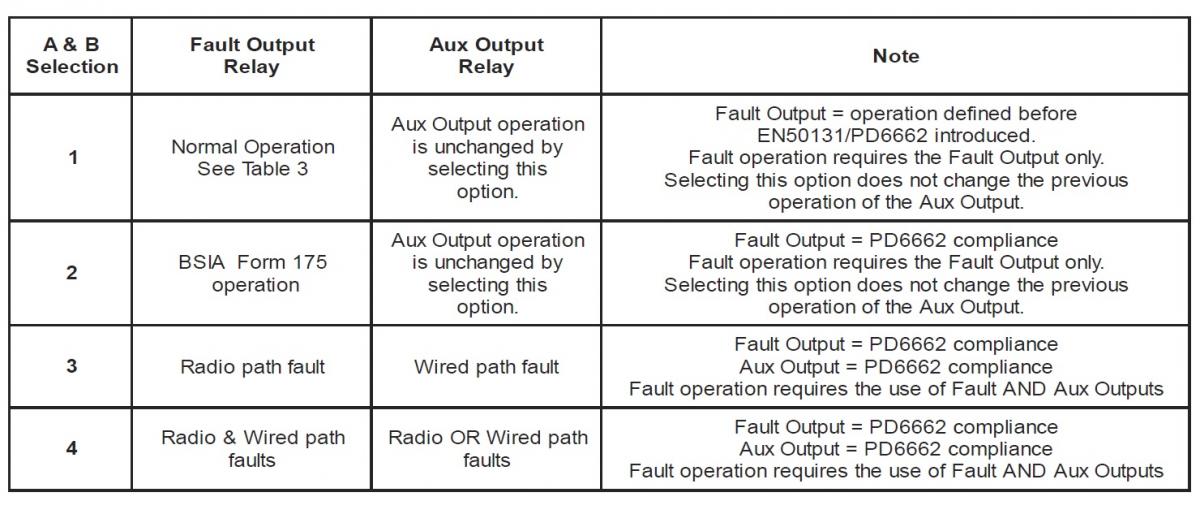

Amps Posted November 16, 2014 Share Posted November 16, 2014 Check out BSIA Form 175 for a way of monitoring single / all path fail via the single line fail input.  I find this BSIA Form 175 confusing  BSIA Form 175  What exactly does it mean?  Also when using a Dualcom what if any is the difference between using option 2 fault output relay - BSIA Form 175 operation and option 3 - fault and aux output relays?  Quote Link to comment Share on other sites More sharing options...
timmo66 Posted November 16, 2014 Share Posted November 16, 2014 DD - this ones for you if your still looking at this thread.... Line fault monitoring on menvier range.... And ion range (same thing). How can you make the panel differentiate between single and all? Always had this issue, even back to the 9853.. Put a voltage to the line fault input and it always shows "line fault all" even though it's single path failure. Quote Link to comment Share on other sites More sharing options...
jiml Posted November 17, 2014 Share Posted November 17, 2014 Pin 10 of the castle panels is defaulted as ATS Test. Connect that to the test pin of a Form 175 compliant communicator. To my knowledge at this time that is Dualcom or Redcare. If there is a path fault, the com triggeres the LF pin as normal. The panel triggers pin 10 in response. This is an instruction to the com. It is saying 'hi, I am a form 175 panel. What kind of path fail is this?' So now the com pulses the relay. The pattern of the pulse is different for single path or all path. So now the panel can display the correct fault on the keypad as an alert. As I recal the panel that can do this are Castle and Texecom. When I worked for Cooper Security Scantronic and Menvier also supported it. But I do not know if ION does. The other use we have for this pin is to trigger an all paths test. One hour before a scheduled automatic remote maintenance (ARM), the panel fires this pin. The com says 'I do not have a line fault, so I will test all paths'. One hour later the ARM message is sent to the ARM server. If any of the paths failed during the test, the panel will by now be in a line fault and therefore fail the service. Hope this helps. Quote Link to comment Share on other sites More sharing options...
Amps Posted November 17, 2014 Share Posted November 17, 2014 Spot on mate Quote Link to comment Share on other sites More sharing options...
timmo66 Posted November 17, 2014 Share Posted November 17, 2014 Superb Jim, thanks. We've been unstuck with this a few times. "Ats line fail all" on the cooper stuff means the system cannot be set, even though it might only be a single path failure. Quote Link to comment Share on other sites More sharing options...
