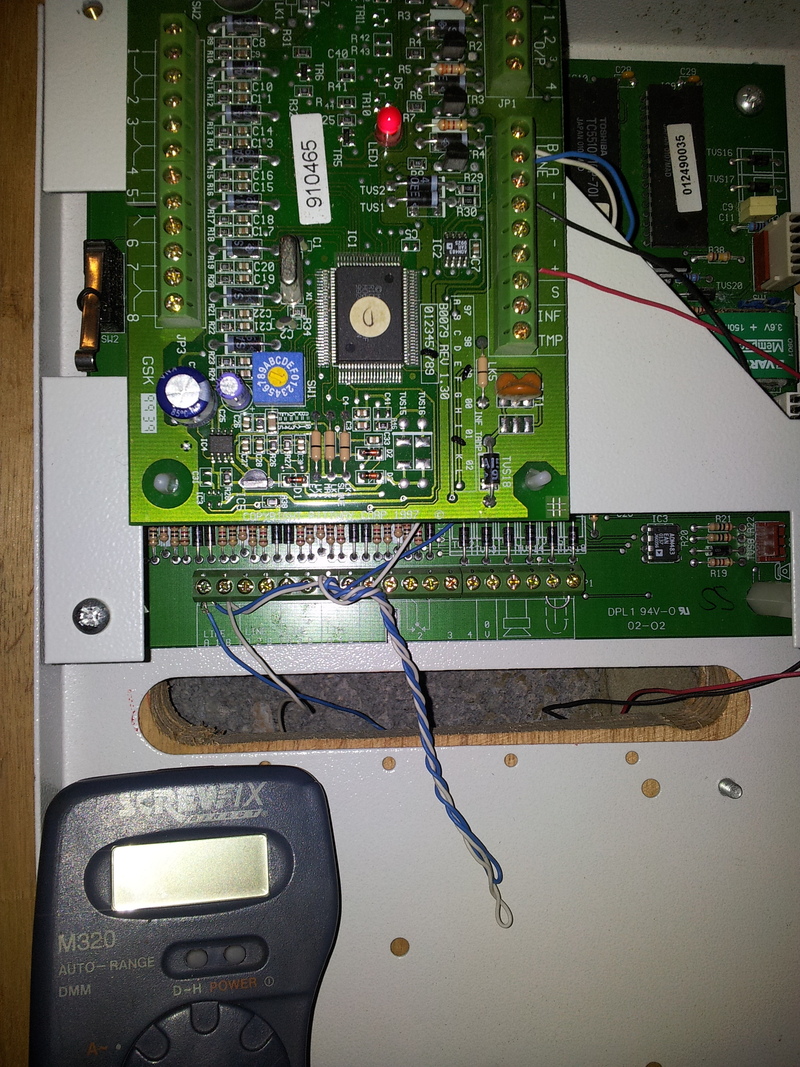

dwdave Posted June 30, 2015 Share Posted June 30, 2015 Hi All, Finally getting round to starting the install of the house alarm in prep for each room coming online as and when they are decorated etc. I have installed the main board and a smart psu with a local keypad for ease of programming etc. I already had a 12v strobe from my old installation but I cant figure out how to get it wired up to the strobes output. It looks like there are three terminals on output 2 (on the rearmost board) but I only have two wires. Can anyone help me out with this one please? 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/ Share on other sites More sharing options...
james.wilson Posted June 30, 2015 Share Posted June 30, 2015 Just use another output as that one is a relay and will require a link to 0v securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422589 Share on other sites More sharing options...
dwdave Posted June 30, 2015 Author Share Posted June 30, 2015 Thank you. I also have some branded Yellow sounders/strobes that will be going in later too - making the link to 0v isnt a problem - but which one does the link go to? 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422590 Share on other sites More sharing options...
dwdave Posted June 30, 2015 Author Share Posted June 30, 2015 are the additional O/P terminals - or + ? 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422600 Share on other sites More sharing options...
al-yeti Posted June 30, 2015 Share Posted June 30, 2015 You can progamme outputs Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422604 Share on other sites More sharing options...
james.wilson Posted June 30, 2015 Share Posted June 30, 2015 they are all switched neg apart from the relay one securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422605 Share on other sites More sharing options...
dwdave Posted June 30, 2015 Author Share Posted June 30, 2015 So for ease, lets say im wiring in buzzers to the O/P, the negative runs to the O/P Terminals and the positive goes to any of the 12v +ve 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422607 Share on other sites More sharing options...
james.wilson Posted June 30, 2015 Share Posted June 30, 2015 Yes securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-422608 Share on other sites More sharing options...
dwdave Posted July 23, 2015 Author Share Posted July 23, 2015 Forgot about this one, wired it all up using the onboard outputs - and i have put the strobe into the relay. Does it require a link then from the 0v to the relay (does it matter which part of the relay (left or right input))? 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-425066 Share on other sites More sharing options...
dwdave Posted July 23, 2015 Author Share Posted July 23, 2015 Yes it does matter - and ive got it working! Pretty lights. 'till the next question ... Link to comment https://www.thesecurityinstaller.co.uk/community/topic/38705-galaxy-classic-500-strobe-wiring/#findComment-425068 Share on other sites More sharing options...
