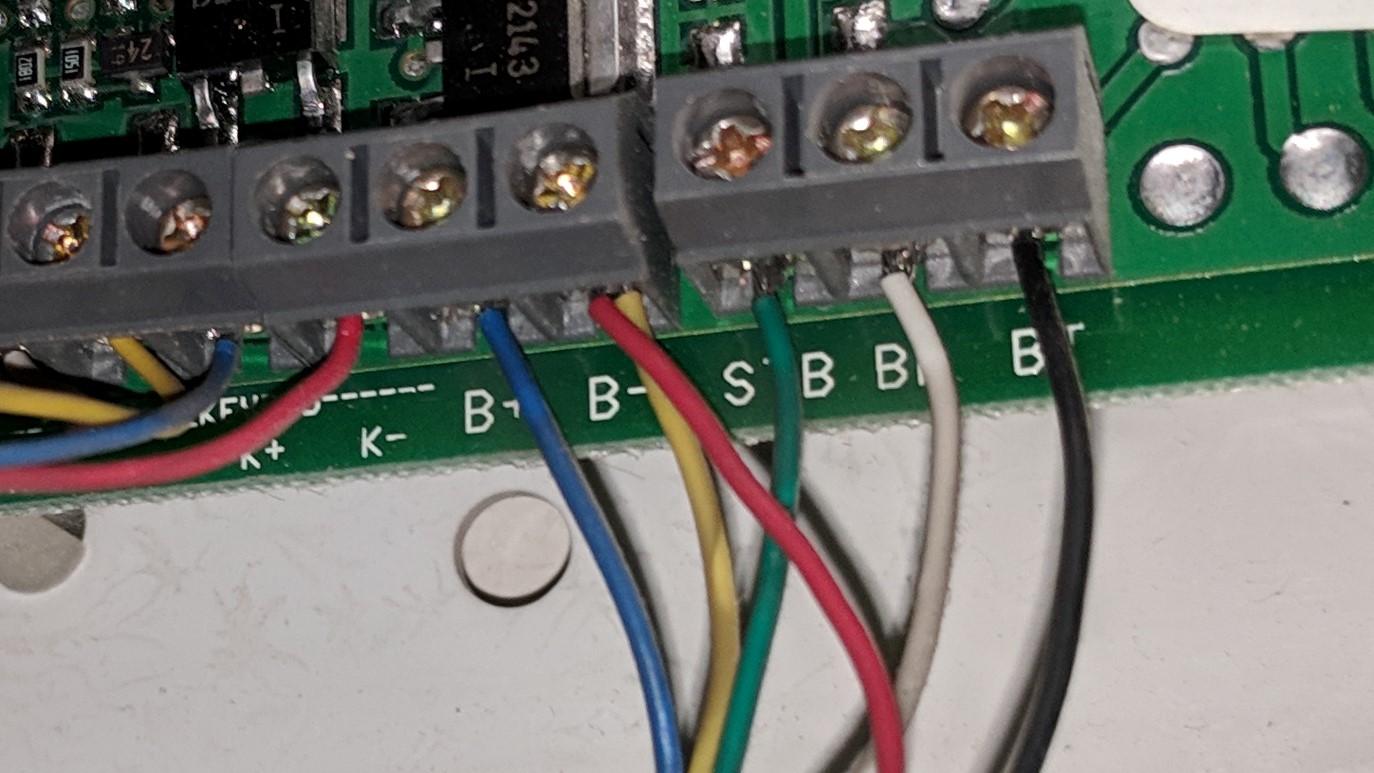

PyronixTexecom guy Posted November 21, 2018 Share Posted November 21, 2018 Hi all, apologies for only joining for a bit of advice, but here I am. My Pyronix Sterling 10 keypad was dying, so I've replaced the whole system with a Texecom Premier Elite. I'm happy I've wired just about everything correctly, testing the zones on the keypads shows that all the door sensors and PIRs are operating properly. The tamper circuit is in series (I may change to EOL later once I understand exactly how to do it) and I have tested that, it works fine. I do not know how to wire the bell. Unfortunately I'd have to hire a ladder to get to it, so I can't see the terminals on the bell or who manufactured it, but I can show you the terminals and wiring used at the Pyronix control panel. The attached image is of the Pyronix. The connections on the Pyronix control panel are: blue - B+. Red+yellow - B-. Green - STB. White - BA. Black - BT. The terminals on the Texecom control panel are: STRB, 0V, Tamp, Bell+, 12V. From the factory, the control panel speaker +ve terminal was connected to that 12V terminal. And a wire link was placed bridging 0V and Tamp. Currently, I have blue (B+) connected to Bell+ and red+yellow (B-) connected to 0V. The bell seems happy with this as it isn't blaring away as it would with no power, but when I run a bell test from the keypad, it remains silent. And I haven't connected the strobe. Can anyone help? Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 (edited) 16 minutes ago, PyronixTexecom guy said: Hi all, apologies for only joining for a bit of advice, but here I am. My Pyronix Sterling 10 keypad was dying, so I've replaced the whole system with a Texecom Premier Elite. I'm happy I've wired just about everything correctly, testing the zones on the keypads shows that all the door sensors and PIRs are operating properly. The tamper circuit is in series (I may change to EOL later once I understand exactly how to do it) and I have tested that, it works fine. I do not know how to wire the bell. Unfortunately I'd have to hire a ladder to get to it, so I can't see the terminals on the bell or who manufactured it, but I can show you the terminals and wiring used at the Pyronix control panel. The attached image is of the Pyronix. The connections on the Pyronix control panel are: blue - B+. Red+yellow - B-. Green - STB. White - BA. Black - BT. The terminals on the Texecom control panel are: STRB, 0V, Tamp, Bell+, 12V. From the factory, the control panel speaker +ve terminal was connected to that 12V terminal. And a wire link was placed bridging 0V and Tamp. Currently, I have blue (B+) connected to Bell+ and red+yellow (B-) connected to 0V. The bell seems happy with this as it isn't blaring away as it would with no power, but when I run a bell test from the keypad, it remains silent. And I haven't connected the strobe. Can anyone help? Where's the bell trigger on the texe? 1 minute ago, al-yeti said: Where's the bell trigger on the texe? I assume it's bt for bell trigger on the pyronix Edited November 21, 2018 by al-yeti Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 So the black bt if it's the bell trigger then it has to go to the bell output on the texe I don't the texe but would have thought it's obvious Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 19 minutes ago, PyronixTexecom guy said: Hi all, apologies for only joining for a bit of advice, but here I am. My Pyronix Sterling 10 keypad was dying, so I've replaced the whole system with a Texecom Premier Elite. I'm happy I've wired just about everything correctly, testing the zones on the keypads shows that all the door sensors and PIRs are operating properly. The tamper circuit is in series (I may change to EOL later once I understand exactly how to do it) and I have tested that, it works fine. I do not know how to wire the bell. Unfortunately I'd have to hire a ladder to get to it, so I can't see the terminals on the bell or who manufactured it, but I can show you the terminals and wiring used at the Pyronix control panel. The attached image is of the Pyronix. The connections on the Pyronix control panel are: blue - B+. Red+yellow - B-. Green - STB. White - BA. Black - BT. The terminals on the Texecom control panel are: STRB, 0V, Tamp, Bell+, 12V. From the factory, the control panel speaker +ve terminal was connected to that 12V terminal. And a wire link was placed bridging 0V and Tamp. Currently, I have blue (B+) connected to Bell+ and red+yellow (B-) connected to 0V. The bell seems happy with this as it isn't blaring away as it would with no power, but when I run a bell test from the keypad, it remains silent. And I haven't connected the strobe. Can anyone help? I think you got it wrong somewhere , picture of panel connections please? Texe experts will turn soon the firmware suitcases Quote Link to comment Share on other sites More sharing options...

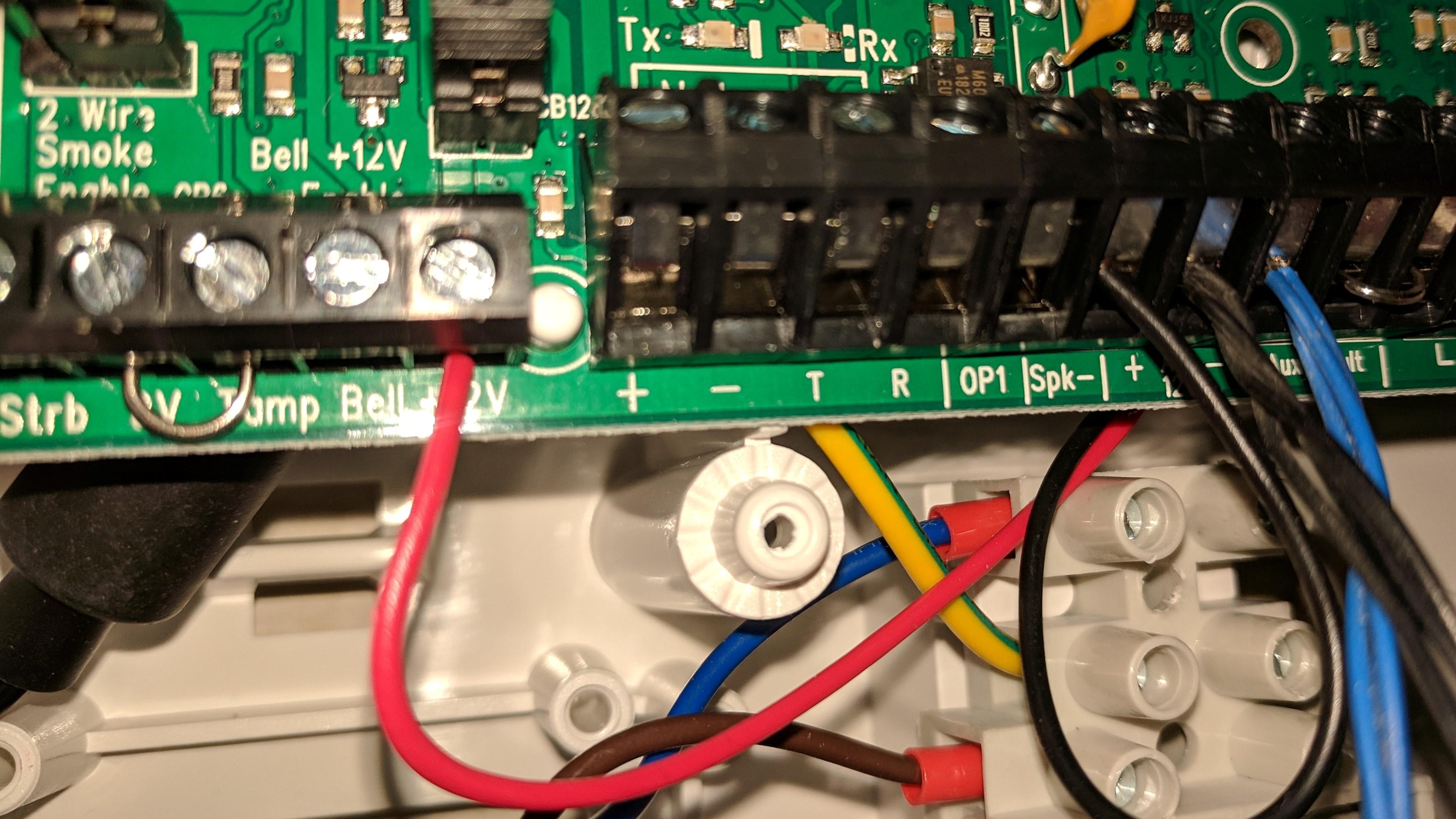

PyronixTexecom guy Posted November 21, 2018 Author Share Posted November 21, 2018 (edited) Apologies for the poor quality but this is what the Texecom panel looks like. When I took this photo I was in the midst of wiring up the keypad, the bell is the last bit to do (terminals on extreme left). The identifying characters are printed beneath each terminal (the writing above is for jumper links). I'd take a better picture but I've closed it up for now, I have to leave for work in a few hours. Edited November 21, 2018 by PyronixTexecom guy Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 2 hours ago, PyronixTexecom guy said: Apologies for the poor quality but this is what the Texecom panel looks like. When I took this photo I was in the midst of wiring up the keypad, the bell is the last bit to do (terminals on extreme left). The identifying characters are printed beneath each terminal (the writing above is for jumper links). I'd take a better picture but I've closed it up for now, I have to leave for work in a few hours. Ok so earlier you didn't mean to write bell+ It's bell then +12v So the terminal bell is the bell trigger Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 (edited) So just to go from panel to panel if that makes sense Bt is tamp BA is trigger B+ is 12v STB is strobe B- is 0v I think lol Edited November 21, 2018 by al-yeti Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 Also you should go for eol now rather than later otherwise you won't do it And get a ladder for the bellbox learn to balance with drill screwdriver and bellbox Quote Link to comment Share on other sites More sharing options...
PyronixTexecom guy Posted November 21, 2018 Author Share Posted November 21, 2018 (edited) Is one of the wires coming back to "B-" on the Pyronix board likely to be the return from the tamper then? Edited November 21, 2018 by PyronixTexecom guy Quote Link to comment Share on other sites More sharing options...
al-yeti Posted November 21, 2018 Share Posted November 21, 2018 No b- isn't tamper return , look at list A wire that came back to bt was the tamper return possibly black if nothing was changed from your original picture Quote Link to comment Share on other sites More sharing options...
