Galaxy Dimension 48 Siren issue

[robertjan]

Goodevening,

I could use some help setting up a Betty Siren (see datasheet attached) on my GD48. My setup is as follows;
MK7, Selfmon LCE-K3 and RF Portal C079-2 on the Bus, connected to several DO8M and IR8M sensors.
Everything works fine, except my siren, I don't get it working.

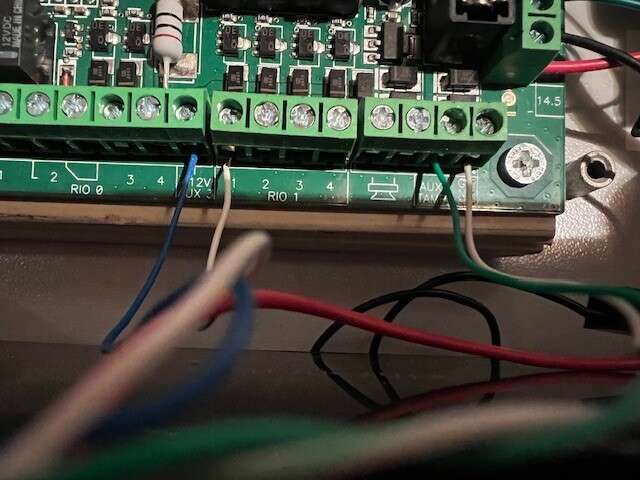

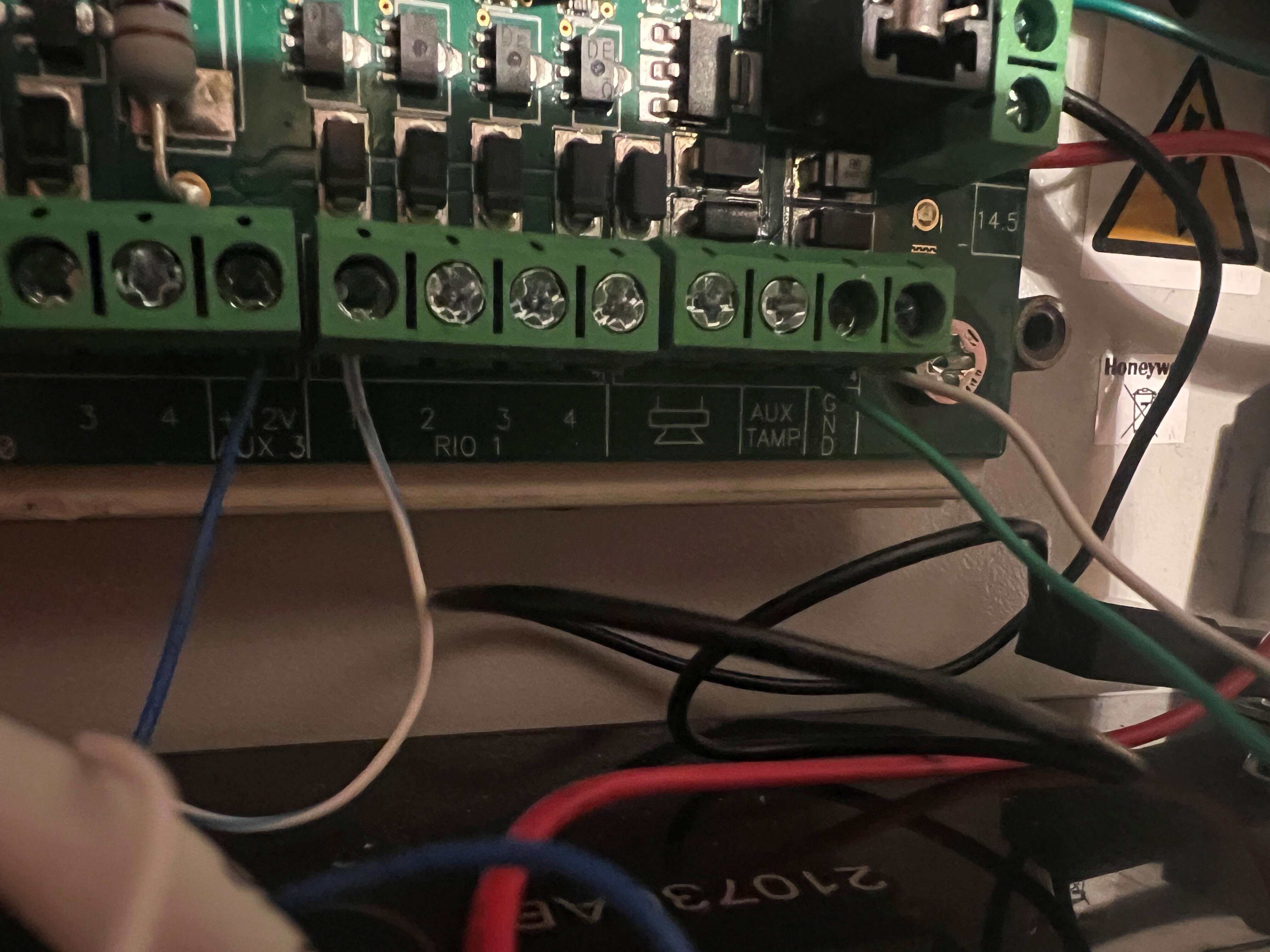

I connected (+) (blue) to AUX3 and (-) (blue/white) 1001, see attached. In my system 10001 output set to Siren V and neg.
Tamper from the siren (white/green and green tot AuxTEMP and GND

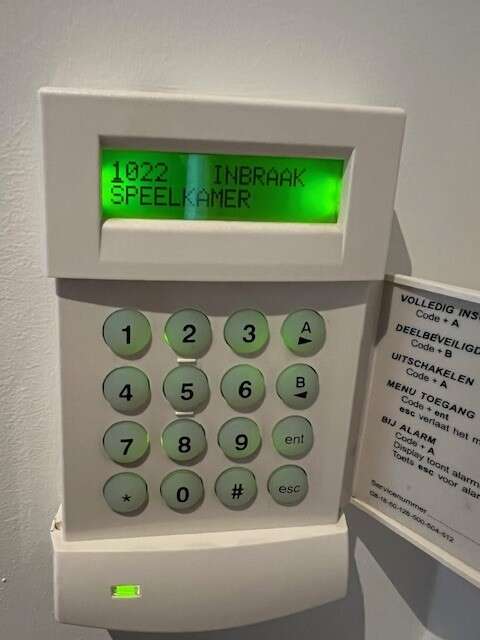

No sound of the siren when zones are violated. All zones are labelled to intruder and Siren also.
Can someone help me out? Thanks so much!

Kind regards,



Robert Jan



Datasheet_Betty_sirene.pdf

[al-yeti]

1 hour ago, robertjan said:

Goodevening,

I could use some help setting up a Betty Siren (see datasheet attached) on my GD48. My setup is as follows;
MK7, Selfmon LCE-K3 and RF Portal C079-2 on the Bus, connected to several DO8M and IR8M sensors.
Everything works fine, except my siren, I don't get it working.

I connected (+) (blue) to AUX3 and (-) (blue/white) 1001, see attached. In my system 10001 output set to Siren V and neg.
Tamper from the siren (white/green and green tot AuxTEMP and GND

No sound of the siren when zones are violated. All zones are labelled to intruder and Siren also.
Can someone help me out? Thanks so much!

Kind regards,



Robert Jan



Datasheet_Betty_sirene.pdf 155.04 kB · 0 downloads

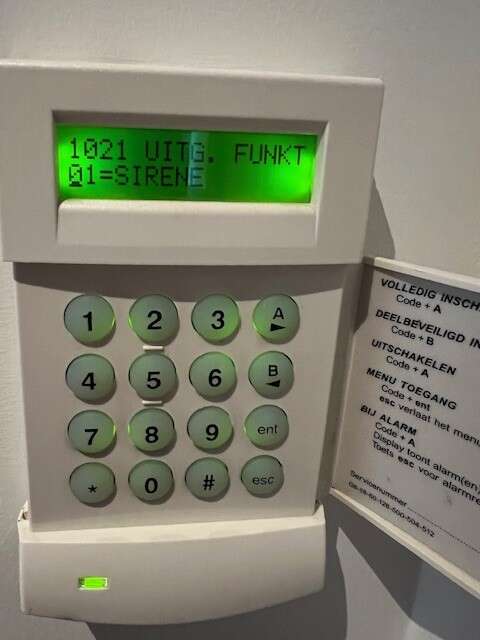

Are you sure the output is set to the word siren can you check exactly what it is?





And you are on Rio one not zero, on the right output

[james.wilson]

Try putting the trigger to hard voltage. If it doesn't trigger isn't an output issue
