omega1 Posted June 15, 2012 Share Posted June 15, 2012 Was asked by my elderley next door neighbour to look at his alarm. Panel is Guardall balmoral 5. Back up battery was knackered which was causing alarm on power cut. Also external bell box did not sound on alarm condition. Internal panel sounder ok. So replaced battery and replaced bell box with odyssey 3e bell box. The positive supply hold off, negative sounder trigger and negative strobe trigger connections im ok with. Im confused with the negative hold off supply which according to the diagram seems to come from the bottom tamper connection. Also the return tamper looks like its wired into the series tamper loop and then into the other tamper connection on the panel. If the connections are made this way the bell box wont come out of hold off mode(flashing right led). To prove that the bell box is ok I wired from the nc 0v connection on the panel and the bell box then worked (released hold off) Can someone please tell me what connections I need to make or did I wire it correctly. There doesnt appear to be a 0v connection on the lower tamper connection on the panel. (panel faulty) ? The original installer had left a shorting link across the tamper terminals ? Sorry for long post. Hope someone can help me. Thanks in advance. Link to comment Share on other sites More sharing options...
james.wilson Posted June 15, 2012 Share Posted June 15, 2012 Do you have pictures of the panel end or terminal names? The balmoral is old now and may even be pos tamp return. You shouldn't have a link in the sab tamper securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
omega1 Posted June 16, 2012 Author Share Posted June 16, 2012 Hi I have attached relevant pages from manual. I have linked a wire from common on cn3 which is at 0v (with connector across pins 2 & 3) to bottom tamper which now lets bell to self alarm. (leds normal) Will this be ok as permanent connection ? Cant get strobe to work however but bell works ok. I have tried linking the strobe trigger to bell trigger but still no joy. I thought repairing computers did my head in but sometimes alarms are worse. Like a challenge though with the help of you knowledgeable folks. Thanks in advance. Link to comment Share on other sites More sharing options...
omega1 Posted June 16, 2012 Author Share Posted June 16, 2012 Cant seem to upload files . Keep getting no file selected for upload. What am I doing wrong ? Tried both versions of uploader and with pdf and jpeg files. Link to comment Share on other sites More sharing options...
james.wilson Posted June 16, 2012 Share Posted June 16, 2012 Testing upload try again now securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...

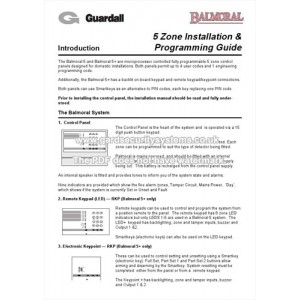

omega1 Posted June 17, 2012 Author Share Posted June 17, 2012 Pages uploaded now. Thanks Hopefully my previous dialogue will make sense. Thankyou.bal 2 .PDFbal 1 0002.PDF Link to comment Share on other sites More sharing options...
james.wilson Posted June 17, 2012 Share Posted June 17, 2012 op The uploaded docs show you how to wire it. You shouldnt have a loop in the panel like that as that appears to be disabling the tamper of the bell. securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment Share on other sites More sharing options...
