Guest deepblue55 Posted September 23, 2006 Share Posted September 23, 2006 i just noticed inside the PIR its using a lower rating resistor, could that be a problem? when you say the tamper contact, which one is that on the wiring diagram? heres the pir - http://classic.myob.co.nz/images/DSCF6274.JPG Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121711 Share on other sites More sharing options...
Guest Posted September 23, 2006 Share Posted September 23, 2006 ...well thats just beautifully engineered..... thanks Mr. Happy - i didn't want to be the one to throw the first stone.. especially the mains connection is very interesting where as chosen keypad cable is quite personal.. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121712 Share on other sites More sharing options...

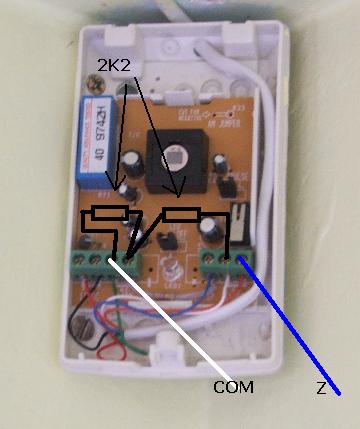

Guest Posted September 23, 2006 Share Posted September 23, 2006 check the other tamper resistor value from the manual.. but like this anyway: COM = screws number 10 13 16 19 Z = screws number 9 11 12 14 15 17 18 20 Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121714 Share on other sites More sharing options...
Guest Posted September 23, 2006 Share Posted September 23, 2006 & seal the spare hole, can't find two matching screws to fix it with? Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121717 Share on other sites More sharing options...
Guest Posted September 23, 2006 Share Posted September 23, 2006 ... two matching screws to fix it with? g'sys krist - now i can't get no sleep Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121719 Share on other sites More sharing options...
Guest deepblue55 Posted September 23, 2006 Share Posted September 23, 2006 thanks, ill give it a go Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121723 Share on other sites More sharing options...
Guest Posted September 23, 2006 Share Posted September 23, 2006 thanks, ill give it a go we await the photo Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121727 Share on other sites More sharing options...
Guest deepblue55 Posted September 24, 2006 Share Posted September 24, 2006 i dont want to confuse the issue but basically im just trying to get an old system working again. i only replaced the control panel, all the PIRs, sirens etc were working fine before the control panel died. do i just need to re-program the zones to match the old control panel, do you think that would work? change them to NC, or NO instead of EOLR? also do i need to do something with the zones not used, or will the fact that nothings connected to them be enough? sorry these are probably really basic questions heres the old control panel, all wired up & working http://classic.myob.co.nz/images/DSCF5957.JPG compared with the new panel saying zones are open http://classic.myob.co.nz/images/DSCF6272.JPG Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121758 Share on other sites More sharing options...
Guest Posted September 24, 2006 Share Posted September 24, 2006 do i just need to re-program the zones to match the old control panel, do you think that would work? change them to NC, or NO instead of EOLR? also do i need to do something with the zones not used, or will the fact that nothings connected to them be enough? your zones are eol wire them up like the bald blokes told tou program them off (unused zones) if the panel will let you or link them out with a resistor Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121759 Share on other sites More sharing options...
Guest deepblue55 Posted September 24, 2006 Share Posted September 24, 2006 thx will give it a shot when i get home from work. hey just wanted to say thx to everyone whos given me some advice on this, i know you dont have to so i appreciate the time youve taken to pass on ur advice to help a newbie ... thx again Link to comment https://www.thesecurityinstaller.co.uk/community/topic/12671-wiring-pirs-to-control-panel-newbie/page/3/#findComment-121766 Share on other sites More sharing options...
