magic-sid Posted February 16, 2009 Share Posted February 16, 2009 Hello all I really need some help.. Ive fitted my first i-on16 system today, All seems fine.. Getting maximum signal strength even with the PIR at total opposite end of the house in conservatory. Im impressed Anyway.. Everything seems fine exept the external bellbox, The bell box i have used is a Texecom Odyssey. I have power at the box, strobe is connecting fine, Blinking as it should in day mode. I JUST CANT GET AN EXTERNAL SIREN.. No sound from the box. Ive done the test on the i-on16 panel activating the external bell On/Off... But nothing????? I would really appreciate someones help on this. I have photos to show you of the connections so far.. Maybe someone can show me what ive missed?? I really appreciate someone help. Thank you Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/ Share on other sites More sharing options...

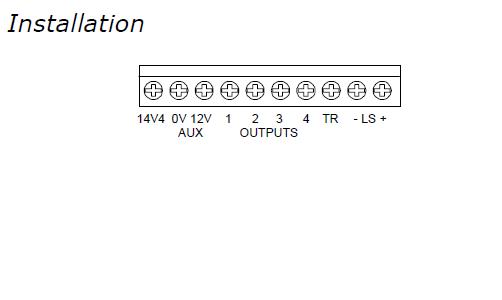

james.wilson Posted February 16, 2009 Share Posted February 16, 2009 Ok using your colours Green (lloks like strobe trigger) to output 2 black (assuming HO-) to 0v Yellow (looks like tamper return) to TR Blue (looks like bell trigger) to output 1 Red (looks like HO+) to Aux12v program output 1 as a bell and output 2 as a strobe. securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224976 Share on other sites More sharing options...
Guest old-hand Posted February 16, 2009 Share Posted February 16, 2009 Yeah looks about right there JW Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224977 Share on other sites More sharing options...
magic-sid Posted February 16, 2009 Author Share Posted February 16, 2009 No resistor Needed? Just the straight 5 cores should do it? Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224981 Share on other sites More sharing options...
james.wilson Posted February 16, 2009 Share Posted February 16, 2009 no resistor needed unless you configuring a high security bell (dont know the ody so cant say if it has a high sec fearure as i have never fitted one) securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224986 Share on other sites More sharing options...
Guest old-hand Posted February 16, 2009 Share Posted February 16, 2009 No resistor, pls nooooooooooooo they dont like some panels with their own built in resistance. Let alone another one fitted. 5 cores will do the trick. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224990 Share on other sites More sharing options...

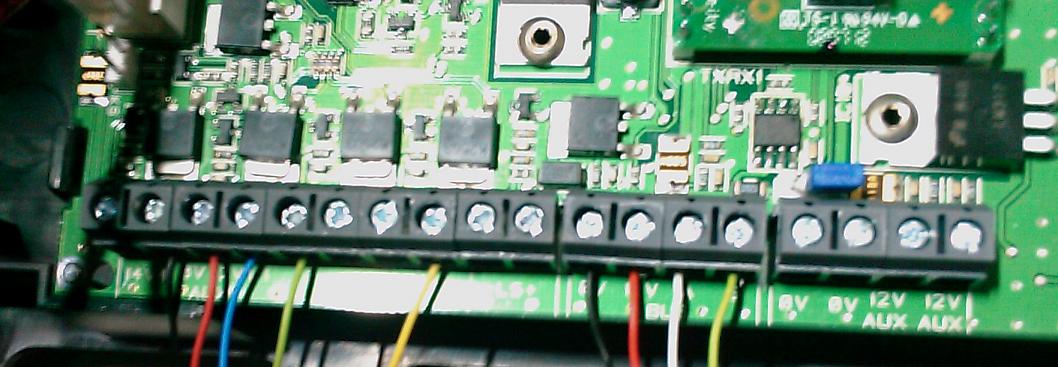

magic-sid Posted February 16, 2009 Author Share Posted February 16, 2009 I have connected today exactly as you have mentioned (shown in photo).. But i'm only getting strobe... No siren?? Probally i have not programed the outputs right, but im sure i had gone through this and done it right. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224991 Share on other sites More sharing options...
james.wilson Posted February 16, 2009 Share Posted February 16, 2009 are all the tampers on the bell closed and the battery link fitted? securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224992 Share on other sites More sharing options...
Guest old-hand Posted February 16, 2009 Share Posted February 16, 2009 Does the panel not come with outputs pre programmed ( sorry not used this one yet). Does the manual not say what they are pre-set at? Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224993 Share on other sites More sharing options...
james.wilson Posted February 16, 2009 Share Posted February 16, 2009 confirm the outputs are going low by using a multimeter securitywarehouse Security Supplies from Security Warehouse Trade Members please contact us for your TSI vetted trade discount. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/26998-connecting-ex-bell-to-i-on16-panel-help/#findComment-224994 Share on other sites More sharing options...
