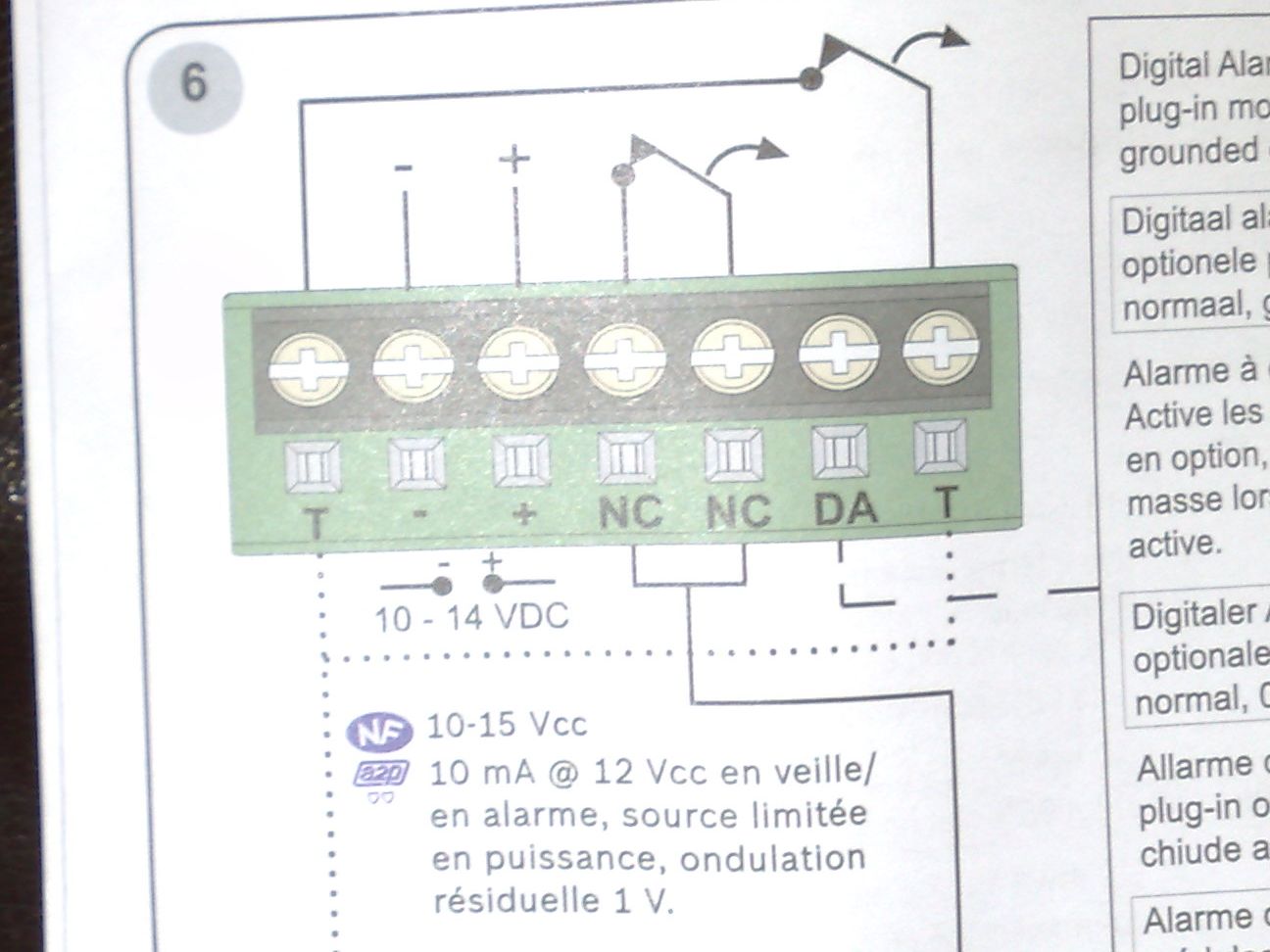

valks1 Posted February 15, 2008 Share Posted February 15, 2008 Hi I have a Bosch P1 Blueline PIR sensor. I am totaly confused as to what wire goes where. I have the + & - going to the Aux +- on the panel. I have a eurosec cpx panel. I need to know where to wire the 4k7 and 6k8 and 12k resistors to make it EOL. I have attached the drawing with the sensor. Can someone please advise. Valks Link to comment Share on other sites More sharing options...
Guest anguscanplay Posted February 16, 2008 Share Posted February 16, 2008 Thats great help, i will give it a try later.What is mask and anti mask. PUBLIC FORUM the detector indicates if its range has been reduced or blocked etc Link to comment Share on other sites More sharing options...
kka Posted February 16, 2008 Share Posted February 16, 2008 leaving this to the mods, please delete if to much info.....thanks the 6k8 goes across the n/c, with the 4k7 going from one terminal of the n/c to one terminal of the tamper.....if you have the manual it explains it very clearly in there..... remember the zone that you are not using, if you are using EOL , then they need to have a 4k7 across them......if in any doubt get a pro in. Kevin Scott. Owner of KK Alarms...... Installation .. Service .. Repair ...... Thoughout.. Northumberland and North Tyneside ..... Tel:01670 361948 (call diverted after 15 seconds) or 07947444114 Link to comment Share on other sites More sharing options...
valks1 Posted February 17, 2008 Author Share Posted February 17, 2008 MODERATORS I had received a genuine reply from a member, containing a revised drawing of mine, clearly showing me how i needed to wire my pir. But now you have removed it! Can you please explain why ? This is the DIY section is it not? Can you please place the drawing back ? If not can the person who posted it please email it to me ? I had set today aside to work on this an now i cant. Also the pir manual is not clear, thats why im seeking advise from a diy forum. As for coments like "get a pro in" , im sure im more then capable if wiring it in, i just need to know how. Moderator please advise. Link to comment Share on other sites More sharing options...
valks1 Posted February 17, 2008 Author Share Posted February 17, 2008 Ok, taking the advise from KKA, that would leave the + and - to go to the Aux power, but where do the other two zone wires connect to ? Do they go on the NC contacts ? if so does it matter which one goes to + or Minus on the zones ? This also leaves one tamper not connected, and the DA terminal not connected, is this right ? Link to comment Share on other sites More sharing options...
Guest anguscanplay Posted February 17, 2008 Share Posted February 17, 2008 MODERATORSAlso the pir manual is not clear .............. the manual that came with the panel might be a better place to look (hint hint LOL) Link to comment Share on other sites More sharing options...
valks1 Posted February 17, 2008 Author Share Posted February 17, 2008 the manual that came with the panel might be a better place to look (hint hint LOL) Thats the problem the terminals indcated in the manual are named different to the ones actually on the PIR. LOL Is there anyone who can help ? Link to comment Share on other sites More sharing options...
Guest anguscanplay Posted February 17, 2008 Share Posted February 17, 2008 the 6k8 goes across the n/c YOUR NC AND NC, with the 4k7 going from one terminal of the n/c YOUR NC to one terminal of the tamper YOUR T.....if you have the manual it explains it very clearly in there..... THEN CONNECT ONE CORE OF YOUR CABLE INTO THE NC TERMINAL THAT HAS ONLY ONE RESISTOR IN IT. AND CONNECT THE OTHER CORE TO THE T TERMINAL THAT HAS NOTHING CONNECTED INTO IT Link to comment Share on other sites More sharing options...
valks1 Posted February 17, 2008 Author Share Posted February 17, 2008 THEN CONNECT ONE CORE OF YOUR CABLE INTO THE NC TERMINAL THAT HAS ONLY ONE RESISTOR IN IT. AND CONNECT THE OTHER CORE TO THE T TERMINAL THAT HAS NOTHING CONNECTED INTO IT Ok thanks for all your help, except the removal of the usefull drawing ! Link to comment Share on other sites More sharing options...
Guest anguscanplay Posted February 17, 2008 Share Posted February 17, 2008 Ok thanks for all your help, except the removal of the usefull drawing ! we CAN make it too easy - LOL Link to comment Share on other sites More sharing options...
