Guest etd139 Posted October 22, 2005 Share Posted October 22, 2005 Hello i have a Nexus 8 alarm system and the bellbox has failed so i bought a new one . The new bellbox is a Aritech AS610 but i cant wire it up. i have the instructions for the alarm control panel and for the new bellbox but i cant still work it out . please help Edward Link to comment https://www.thesecurityinstaller.co.uk/community/topic/7920-nexus-8-alarm-panel/ Share on other sites More sharing options...
Mister_Dave Posted October 22, 2005 Share Posted October 22, 2005 Post the terminals of the bellbox and the panel and i will try and work it out. Dave Oxendale York based security systems engineer. Link to comment https://www.thesecurityinstaller.co.uk/community/topic/7920-nexus-8-alarm-panel/#findComment-73102 Share on other sites More sharing options...

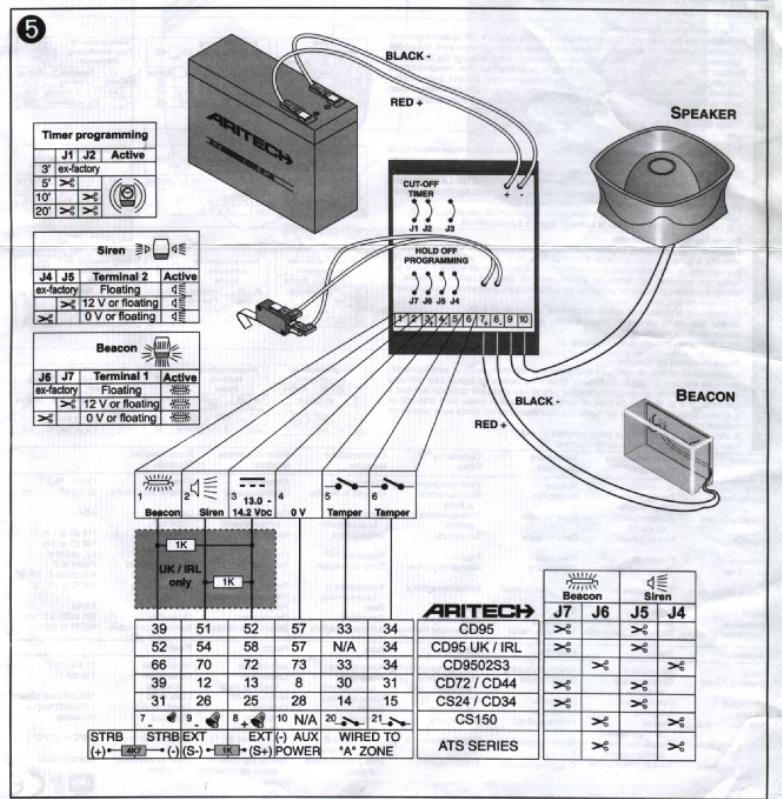

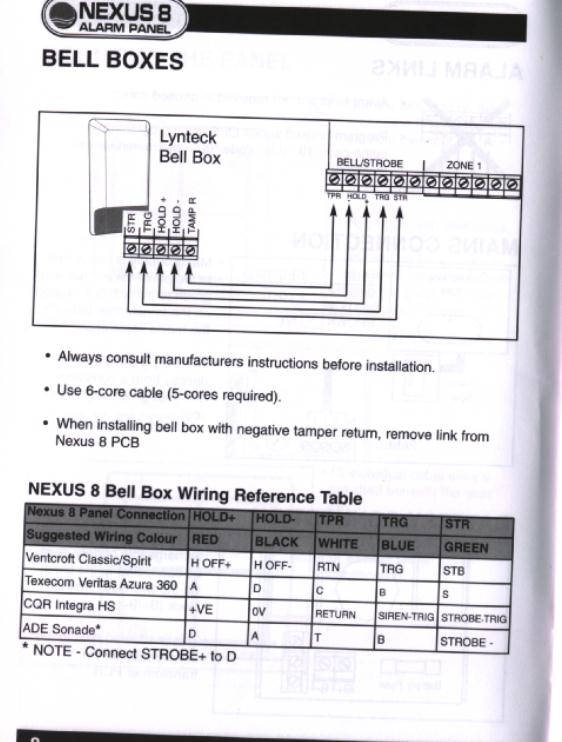

Guest etd139 Posted October 22, 2005 Share Posted October 22, 2005 Post the terminals of the bellbox and the panel and i will try and work it out. hi Dave see what you can do please regards Edward Link to comment https://www.thesecurityinstaller.co.uk/community/topic/7920-nexus-8-alarm-panel/#findComment-73122 Share on other sites More sharing options...
Service Engineer Posted October 22, 2005 Share Posted October 22, 2005 Bellbox-/-Panel 1--/--STR 2--/--TRG 3--/--HOLD+ 4--/--HOLD- 5--/--HOLD- ,(or could just be linked to 4 directly in the bellbox). 6--/--TPR You will probably have to cut some jumpers to configure the bell ring duration: (J1= 5 Mins), (J2=10 Mins) & (J1 & J2 for 20 mins), and probably J4 & J6 to enable the 0 volt triggering of Sounder and strobe. You may also have to wire in the 2x 1K resistors as shown on the diagram. One from 1 to 3, the other from 2 to 3. ........................................................ Dave Partridge (Romec Service Engineer) Link to comment https://www.thesecurityinstaller.co.uk/community/topic/7920-nexus-8-alarm-panel/#findComment-73123 Share on other sites More sharing options...
