Would it matter if the contacts do not have a specific tamper terminal? I am using the CQR 1 Reed 5 Terminal Surface Contact Grade 1

There maybe a little bit of a confusion here. It's not multiple FSL but rather two contacts on a single zone is using FSL/EOL where the last contact has the 2k2 resistor in and the first contact only has a 4k7 resistor.

This topic maybe exhausted but I couldn't find s definite answer hence why I am asking the question ; On a scantronic 9651, software version 4 can you have multiple magnetic door contacts on the same zone using FSL? I have currently tried this however I am getting tamper each time a contact is opened and wondered what could be the cause as I have tripled checked the terminations and can't seem to find the fault. I am able to exit engineers mode without any tamper however when a contact is opened it goes directly into tamper, however if I have just one contact connected it works fine. I am using 4k7 for alarm and 2k2 for tamper.

Hi, Just wondered if anyone has installed a pyronix Enforcer by the internal front door? Thanks

Not sure what to make of this but batteries replaced and tamper faults are recognised by the panel however not if they are removed from their position I.e you can remove the battery and take the pir off the wall and the system would be none the wiser. However as its a new battery if you were to open up the pir it would go into temper

Thanks I'll re-learn the devices when the batteries are replaced and report back with my findings.

Thanks for the explanation. Am guessing that means that on my current alarm system it doesn't poll and therefore doesn't recognise that there are two detectors missing hence why the alarm can still be set and they can be removed without the system recognising there is a fault. Also just to confirm this is also the reason they didn't go into tamper when I opened them up to remove the battery. Would I be able to program them for tamper as well as Final Exit and Entry route once I replace the batteries by asking the RXF08 to re learn the devices?

Please explain what you mean by next poll?

Thank you for your reply. The contacts do work on normal alarm. The Door Contact used as Final Exit and the PIR is on Entry route. Currently I have removed batteries from both as they were low and I need to replace them, however I am still able to set the the alarm without them which is making me wonder why that is as I have changed nothing in the programming?

Hi All Control Panel 9751EN Keypad 9943 Prox Wireless Expander RFX08 PIR Scantronic 714r Passive Infrared Detector and Transmitter x4 Door Contact Scantronic / 734r Wireless Door Contact x2 Does anyone know why the tamper fault wouldn't be activated when I remove the lid from a PIR and a door contact.

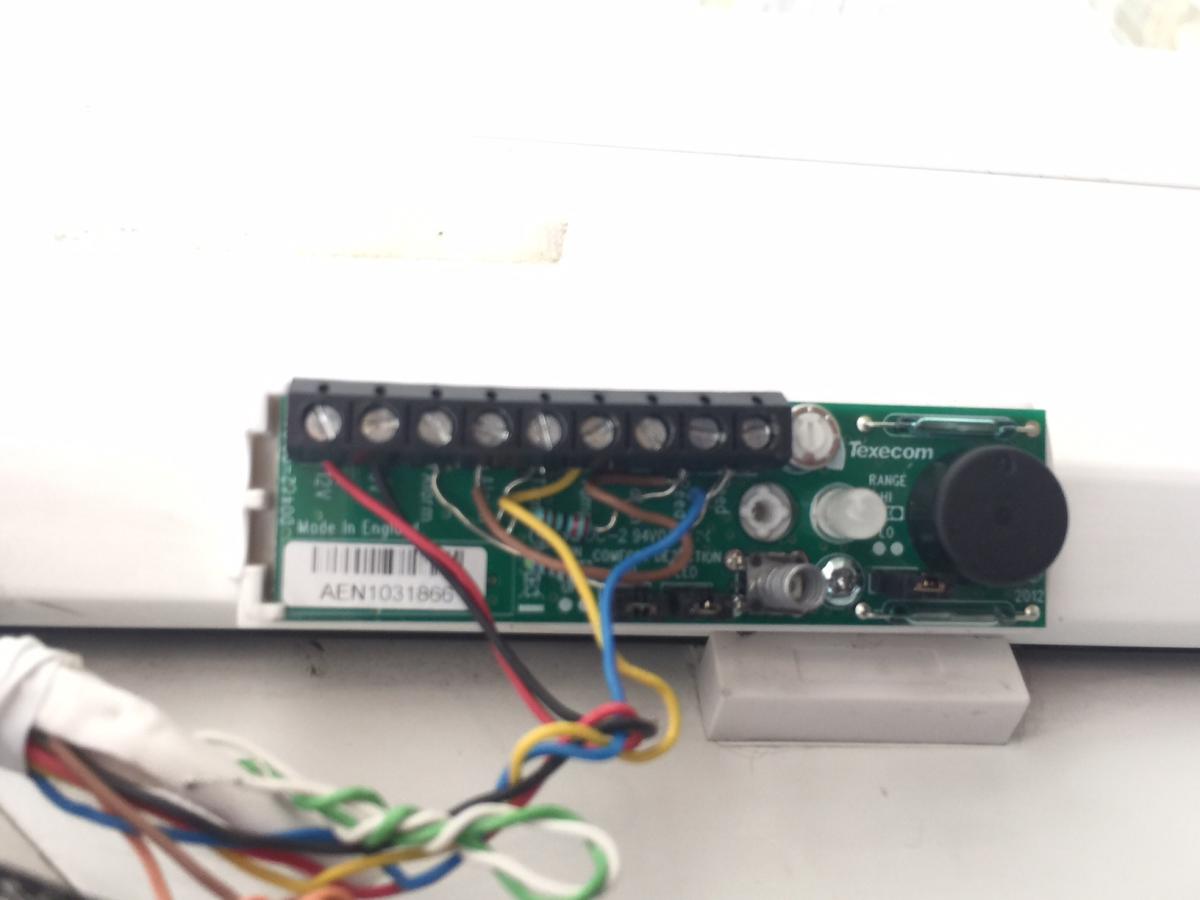

Attached is the final wiring configuration I used to get the Impaq plus working as a door contact. The only problem I was left with was enabling a second sounder, everything else works fine.

Currently the contact is working using a pair for reed and a pair for tamper and the zone set up as "normally closed". I tried all the different wiring configurations provided using the resistors but none of them seemed to operate in the manner I would have liked it to work, i.e door contact and shock sensor. I shall post pictures as soon as available as it's currently installed at a friends house, The sensor was brand new out of the box and I have tested to see if it doe work correctly and have proved it does, however as I stated not with the resistors. I accept your comments that I need to vastly improve me knowledge and experience and I am trying to work very hard and quickly to grasp all the vast knowledge that all the more experienced engineers out there have. I have recently changed careers and perhaps this is why you may all feel my understanding of this subject is slow.......

I had to come back and tell the full story.................. Basically yes the magnet was not in the correct position, how ever I removed all the wiring and resistors and started from scratch by testing the continuity of the pairs to make sure the panel could see the open and close of the circuit, after I which I rewired the contact using 4 wires x2 reed x2 tamper and programmed the panel for Zone 1 - normal Closed. And activated the chime function this then operated the way I wanted, But i had not to wired the Shock sensor in,......yet. I then proceeded to to align the magnet, and rewire as per the diagrams provided by QSXS and changed the program to Double pole/EOL and I experienced the same issues I had when the magnet was in the wrong place, it was either secure or active when I was changing which terminal I was going back to the panel from but apart from that nothing else, i.e. when the door opened there was no chime. Texecom suggested that I put a 4k7 resistor across reed and alarm, a 2k2 resistor across reed and tamper and a link between the remaining terminals of reed and alarm to perform a closed circuit (shock and reed on same zone) this didn't work wither. I am going to keep at this until I figure it out, as somewhere there is something I am not doing or missing................ But for now I wanted to thank all those that have contributed and helped me get this far....................

Thanks WDT that's exactly the problem turns out the magnet wasn't close enough

No Joy, Have wiresd according to diagrams provided but none work for me. Have even tried Texecom tech support and followed their way but still nothing. I have noticed one thing when I try s different reed terminal I either get secure 2k2 or Active 6k8
