Changing Alarm bell boxes to Texecom Odyssey X3- Multiple unit,


Recommended Posts

Hi Technical,

I wondered if you could advise me, as i have the Texecom Veritas R8 system.



I have 8 sensors, 3 remote key pads, control panel R8 and 2 external alarm boxes.



However my 2 old alarm bell boxes was not the Texecom odyssey brand.



My front Alarm Bell box was faulty, as the alarm was keep triggering off, this was the 1st Alarm bell box at the front of the house.



Battery voltage on the multimeter reading it was 11.20volt.



I have checked the voltage on the control panel on on the wiring on the (SAB) , so i placed the multimeter on the terminal B and A on the control panel on the bell box wiring and i see a reading 8.50volt DC.  Reading on A and D is 11.20volt DC.



Transformer Voltage and it was 18.30AC to 18.60AC .



However to cut the long story short, i am now replacing the both Both Alarm bell boxes to Texecom Odyssey X3 BE.



My concern is the i am wiring the multiple wired unit, so 2 bell boxes , one at the front of the house and the rear of the house.



Do i need to have the jumper switch on the SCB on both alarm boxes or 1st Alarm box needs to be SCB and the 2nd Bell box on the SAB.



1st bell box i need to remove the Tamper wire from MSW 2, however the MSW 1 this will remain on the 1st bell box.



So the 1st bell box spare Tamper wire MSW 2, which i disconnect, i need to join it with the extra cable on the Alarm cable and then join this cable from the Control panel, so this can be linked to the bell box 2 on the MSW 1.



Do i need to anything on the LC (Low Current) Jumper swtich or do i leave it as it , which is off on the Unit bell box, as i will be setting the Alram bell box to SCB.



I would appreciate your help and advice.



Kind Regards



Caretaker

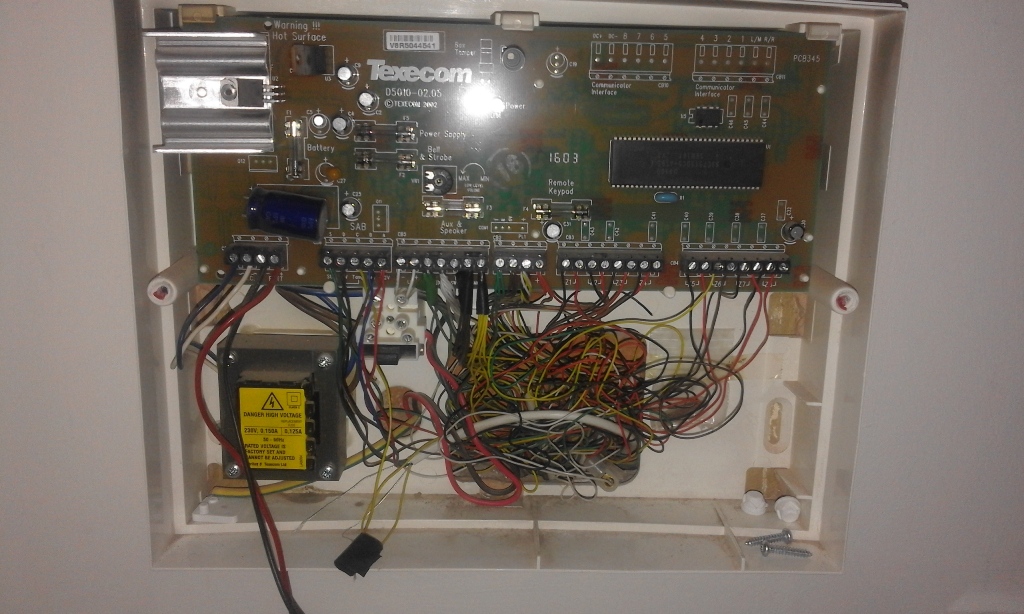

Control Panel (1).jpg

Control Panel (2).jpg

Control Panel (3).jpg

Control Panel (4).jpg

Control Panel (5).jpg

control panel.jpg

Link to comment
Share on other sites

This is the Rear Alarm bell box pictures, which was workign fine, but due to problem with the front of the house alarm bell box keep triggering, so this is the reason i am now replacing both Alarm bell boxes, so the new alarm bell boxes matches the Texecom brand.

Bell box (1).jpg

Bell box (2).jpg

Bell box (3).jpg

Bell box (4).jpg

Link to comment
Share on other sites

22 minutes ago, MrHappy said:

wow, that looks like 2 bell boxes, 3 keypads & 8 pirs off a 1amp veritas....



BTW your global tamper will never work...

AgreedPSU required and the tampers need to be in series unless you have some sort of open circuit tamper thing going on

Link to comment
Share on other sites

Hi All,

Thank you for your reply.



Is there is a problem on my Alarm system, as this was installed back in 2007 and never had a problem since then.



It is now the front of the house bell box was playing up.



So how do i check the Global tamper or is it because there is too many wires going into the Tamp (Brown and Yellow).



Link to comment
Share on other sites

Thank you for all your replies.

I had a problem on my alarm system, as the front of the house bell box was sounding intermittently, there was no tamper on the  key pads remote and the power was on (solid green light), as there is no flashing light on the control panel R8.

I have taken the battery out, as the alarm was keep triggering off intermittently. if you press the key it just would not accept, so i suspect the 12Volt battery and checked the voltage and it was 11.20Dc Volt.So i thought Battery still have some life.

However i have 2 bell box fitted one at the front and one at the back. The back bell box is ok, as there is no activation , as it is only the front of the house bell box triggering.

Without checking and going up the ladder, i thought the Front of the bell box, could  of have been damaged from the weather, as the wiring and the alarm system was installed about 8-10 years ago and there has not been work carried out since and i suspect it is the front of the house bell box.

When i placed the battery it will not let me invoke the bell box, as the sounder keep triggering off intermittently.

disconnected  the B terminal cable in the control panel for the  sounder, if it does make a sound then the cable is faulty, if it doesn't, then the Bell box is faulty.

Transformer voltage, which was reading 18.30-18.60 Ac volts..
Link to comment
Share on other sites

You have one wire in the tamper return for the bell so I take it that either you have wired the tamper returns in series, or only connected one tamper return. You have two negatives in the bell power terminals and the circuit tampers are not wire correctly which would suggests to me that you probably havent wired the bell return in series  at all, and probably only have one bell tamper returned. The current being drawn from your system when in alarm is higher than the power that your control panel is able to supply.



Before you go and waste money on buying two new bell boxes.



1. Do you understand what series means?



2. You need another power supply to run everything that you are trying to run off of your panel. At the moment you are trying to tow a caravan with a 50cc motor bike, you may be pulling it along okay but you are putting enormous strain on everything, and eventually something will give.



Your transformer should be around 19.5vAC the 12dc output should be 13.5Dc so I would say the panel power supply is on its way out, or the battery in your multimeter needs changing, assuming its calibrated.



Link to comment
Share on other sites

The series you are talking about I need to do it as the below picture. So I will need 8 terminal block and wire the yellow and brown tamp wire in to this terminal block. So I will be linking the wire as series ,as the image.



I have already bought the 2 alarm bell boxes, as I thought add the back lit illuminated bell box and I thought the front had gone faulty.



I will check the wiring on the alarm bell box,as you mentioned there is only one yellow wire going into the bell box and one yellow wire showing connected on the control panel.



I think , as I have not checked yet, but the yellow wire is connected on the terminal block and connected to the White wire and then it connects to the 2nd bell box. But I need to check to confirm 100 percent.



As you mentioned I need to add another power supply, how do you add another power supply, as I thought the bell box would take the power from the back up battery when you have the jumper switch on the SCB, instead of the current drawing from the panel it will used the back up battery.



Texecom told me 18.30vAc volt should be fine ,as your alarm system will still work. I have 2 multimeter and checked it with both and gave the same reading.



how do you check if the panel supply on it way or the whole panel R8 needs changing ?



when the alarm triggered it would not switch off,as it would not accept the key on the key pad and usually you get this symptom if the battery is weak or mains failure.



Like I said there was no fault showing, no tamper light, solid green light on the control panel and keypad.














Link to comment
Share on other sites

You use the other power supply (with another back up battery) to power the detection and keypads, the panel will handle the bells on its own. The drawing shows the tampers in series, for the circuits, you just have to find the page that shows putting two sounders in series now.

Link to comment
Share on other sites





I had ad to check the transformer to make sure it has the correct voltage, which was reading 18.30vAc -18.60vAc.



Then next step would of been  defaulting the panel.



where would I use the other power supply from or do you mean I need to add another separate unit with the battery back up to power the detectors,sensors and key pads.





Control Panel (1).jpg

Control Panel (2).jpg

Control Panel (3).jpg

Control Panel (4).jpg

Control Panel (5).jpg

control panel.jpg

Bell box (1).jpg

Bell box (2).jpg

Bell box (3).jpg

Bell box (4).jpg




Edited by sixwheeledbeast
Reformat and remove duplicate posts
Link to comment
Share on other sites



Sorry for the Above i do not what happen there, as i tried to copy and paste something.



I Have checked it by disconnecting the B terminal cable in the control panel for the  sounder, if it makes a sound then the cable is faulty, if it dosen't, then the Bell box faulty.



I had ad to check the transformer to make sure it has the correct voltage, which was reading 18.30vAc -18.60vAc.



Then next step would of been  defaulting the panel.



where would I use the other power supply from or do you mean I need to add another separate unit with the battery back up to power the detectors,sensors and key pads.






Link to comment
Share on other sites

This is the below email i have sent to Texecom Technical



---------- Forwarded message ----------
From: Texecom Ltd - Customer Support Department <techsupport@texe.com>
Date: Mon, Jun 13, 2016 at 12:46 PM
Subject: RE: Changing Alarm bell boxes to X3- Multiple unit,
To:  <caretaker46@gmail.com>

Hello Sir,



Yes simply change one bell box only, you will not need another power supply.



The detectors tampers should be wired in series otherwise they will not trigger a tamper on the control panel. Wiring on the AUX/Flt terminals is the correct positions. Wiring in this way means you do not need to use resistors.



Kind regards



Michael Govier
Senior Customer Support Engineer

Key Account Manager

T: +44(0)8456 300 600
E: mgovier@texe.com

Texecom Ltd • St Crispin Way • Haslingden • Lancashire • UK • BB4 4PW




From: [mailto: caretaker46@gmail.com]
Sent: 13 June 2016 12:07
To: Texecom Ltd - Customer Support Department
Subject: Re: Changing Alarm bell boxes to X3- Multiple unit,



Dear Michael,

Thank you for your reply.



So i need to only move the jumper switch on 1st bell box to SCB and the 2nd box and i can leave the jumper on SAB, as there is no need to move the SCB jumper on both boxes.



Battery jumper will be ON position for both boxes, once i have done the wiring.



I have another Problem, as i noticed the Global Tamper wiring for the Reflex powered sensor all goes into 2 separate terminals of Global tamper (Brown and Yellow) however it is still working fine, but does  it needs to be Series wiring am i correct or would it still work, as the attached picture,as the Global tamper may not work properly. All the Reflex / Medusa  powered sensor is wired up single zone detector for every 8 zones.  All my sensor are (Normally Closed).



Do i need to have End of line resister for the Reflex / Medusa  powered sensor on the Global tamper last wire  or they built in?



What about the wiring for the Reflex/ Medusa powered sensor AUX - and AUX +, this should be ok as wired on the control panel ?



Same for the 3 remote key pads, as this is wired  single powered instead of Parallel (star) or Series ( daisy -chain), but still work fine or do i need to change this to  Parallel or Series ?



Do i need a another Power supply unit (PSU) due to 8 Powered zones, 3 key pads and 2 alarm bell boxes, as is it not overloading the control unit panel, as the it is 1amp ?



When both bells are activated will i not be overloading the onboard PSU, so i might need another PSU.



Please confirm your thoughts before i change over the 2 Alarm bell boxes.



Many thanks



Caretaker46



On Mon, Jun 13, 2016 at 9:23 AM, Texecom Ltd - Customer Support Department <techsupport@texe.com> wrote:

Good Morning,


Thank you for contacting Texecom Technical Support.



You will not need to change the LC jumper providing you have set one bell to SCB mode. The wiring is correct otherwise.



Kind Regards



Michael Govier
Senior Customer Support Engineer

Key Account Manager

T: +44(0)8456 300 600
E: mgovier@texe.com

Texecom Ltd • St Crispin Way • Haslingden • Lancashire • UK • BB4 4PW




From: [mailto:caretaker@gmail.com]
Sent: 11 June 2016 21:30
To: Texecom Ltd - Customer Support Department
Subject: Changing Alarm bell boxes to X3- Multiple unit,



Dear Technical,



My concern is the i am wiring the multiple wired unit, so 2 bell boxes , one at the front of the house and the rear of the house.



Do i need to have the jumper switch on the SCB on both alarm boxes or 1st Alarm box needs to be SCB and the 2nd Bell box on the SAB.



1st bell box i need to remove the Tamper wire from MSW 2, however the MSW 1 this will remain on the 1st bell box.



So the 1st bell box spare Tamper wire MSW 2, which i disconnect, i need to join it with the extra cable on the Alarm cable and then join this cable from the Control panel, so this can be linked to the bell box 2 on the MSW 1.



Do i need to anything on the LC (Low Current) Jumper swtich or do i leave it as it , which is off on the Unit bell box, as i will be setting the Alram bell box to SCB.



I would appreciate your help and advice.



Kind Regards



Caretaker46.

Link to comment
Share on other sites

Thank you for your reply

But it states in the Manual if if put it on LC i have to leave it at SAB not SCB.



How do i check with the Multimeter of the System load and Standby battery ?



I have added pg 13 for the Electrical information for the Bell box. See attached.



Link to comment
Share on other sites

I am surprised that a senior tech support engineer would say that without knowing what the current draw of the system is. We install systems daily and I can tell you without doubt that you are drawing too much current for the on board PSU. Its up to you but I would check the current draw in alarm before proceeding.

Link to comment
Share on other sites

20 minutes ago, PeterJames said:

I am surprised that a senior tech support engineer would say that without knowing what the current draw of the system is.



Probably never worked at proper co. if he's ever fitted an alarm



From the OP's POV its "worked" for yrs with 2 x ADE sounders which together used 150% of available current ( note newer tech support no. written on the instruction but still no wired right)



how take current readings - http://www.actmeters.co.uk/alarm-advice/fault-finding-a-guide/

Mr? Veritas God

Link to comment
Share on other sites

I will check the Draw current over the weekend.



Which PSU do you recommend, as i wasn't sure which one to buy, if i did go to this route, as i might as well fit another PSU while i am working on it.



Thank you MrHappy for the link how take the Current readings.



What do you mean by abbreviation OP's POV.



I tried telephoning the ADE Sonade200 Alarm bell supplier, i do not know if the compnay exist, as the telephone do not exist and did a google search and could not find them to talk to their Technical team.





 Further correspondence for your information.

---------- Forwarded message ----------
From: Texecom Ltd - Customer Support Department <techsupport@texe.com>
Date: Tue, Jun 14, 2016 at 7:51 AM
Subject: RE: Changing Alarm bell boxes to X3- Multiple unit,
To: caretaker46@gmail.com


Good Morning,


Thank you for contacting Texecom Technical Support.



Based on the information provided I really don't think you will need the additional PSU. ON our website we have a free piece of software called the EN calculator. This will help you determine the current draw of the equipment on the control panel. But as mention I am fairly certain that a PSU will not be required.



As for the wiring providing a common 0V connection is taken into the expander then anything off of the expander will automatically have the common ground.



I hope this helps.



Kind regards



Michael Govier
Senior Customer Support Engineer

Key Account Manager

T: +44(0)8456 300 600
E: mgovier@texe.com

Texecom Ltd • St Crispin Way • Haslingden • Lancashire • UK • BB4 4PW





From: caretaker46@gmail.com
Sent: 13 June 2016 16:02


To: Texecom Ltd - Customer Support Department
Subject: Re: Changing Alarm bell boxes to X3- Multiple unit,



Dear Stuart,

Thank you for your reply.



Can you please email me the PSU Installation literature.



If i did go for the option for adding another additional PSU, I will move the 1st 4 zones (Zone 1 to Zone 4 ) wiring and 2 Sounders on the Additional PSU.



Existing Control panel will have the other 4 zones ( Zone 5 to Zone 8), 3 Remote key pads.



I will have the connection on the Ov on the control panel and Ov to the Additional PSU.



I have the Ov on the Bell box (D) Control panel , I also have the Ov on the keypad  (AUX-) control panel  and I also have it on the sensors (AUX-) control panel.



From these three Ov i need to supply the negative feed from the control panel to the additional PSU.



The below link i need to buy the PSU 200 ?



http://www.texe.com/uk/products/series/power-supplies/premier-elite-series/



Do you have a drawing or diagram or the parallel wiring for the Keypad, as i have the Sensor series wiring diagram from the installation manual on pg14.



I appreciate your replies and helping me out here, as you service is 5* Star.



Many Thanks.



caretaker46

On Mon, Jun 13, 2016 at 3:22 PM, Texecom Ltd - Customer Support Department <techsupport@texe.com> wrote:

Good Afternoon,



If you require additional power, just move half your zones/sounders etc +12 and 0v connections onto the additional PSU; make sure you install a connection between 0v on the control panel and 0v on the additional PSU.



Keypads can be just wired in parallel.



Many Thanks



Stewart Reid
Customer Support Engineer

T: +44(0)8456 300 600
E: sreid@texe.com

Texecom Ltd • St Crispin Way • Haslingden • Lancashire • UK • BB4 4PW







From: caretaker46@gmail.com
Sent: 13 June 2016 15:06


To: Texecom Ltd - Customer Support Department
Subject: Re: Changing Alarm bell boxes to X3- Multiple unit,



Hi Michael,

Thank you for your reply.



So only one box needs to be changed to SCB, which i will do the 1st bell box.



I do not need a additional Power supply, as the control panel i already have should be sufficient.



If i did wanted to add the additional Power supply, how do i do this do you have any information on it, so i can read on it or you can send me the link ?



The detectors Tampers i will change it to series and what about the Keypad wiring does this need to be series or just leave it, as it is how it is been wired now on the control panel ?



Many Thanks



caretaker46

Link to comment
Share on other sites

You need to know what power your system draws in alarm and when its not in alarm.



The bell fuse is rated at 1A on the Veritas, so 2 x XBE would be below 900mA so wouldn't need need either power saving mode of LC or SCB for them to operate correctly, however an XE would be above 1A in alarm for 2 units.



The question will come down to what you have on it and what it draws in total.



The bells are probably the biggest single draw, followed by the battery being charged, the keypads followed by your PIR's.



I would replace both your current bells with the XBE's and that's less draw than you had previously and comfortably within the available limit, worst case you could drop one to LC if it did struggle, but it shouldn't.



Link to comment
Share on other sites

Hi secured am,

Battery was changed last year 12volt 2.1ah after decorating the house. Since the alarm bell was triggering off, I thought the battery was faulty, as it will not let me key in the keypad. So I exchange the battery from the electrical shop, but when I installed the new battery it had the same problem, alarm bell was triggering off, so I had to find out what was causing the alarm to trigger off. since then I have not connected the alarm. I then asked Texecom for advice and the told me to check the voltage on the transformer, check the B terminal to find out if the cable faulty or Alarm bell box faulty.



when I check the power system draw Alarm and not in Alarm, I will have to do this once I sorted out the sensor series wiring and fitted the 2 Alarm bell boxes, as at the moment alarm is not working due the front alarm bell box keep triggering off .



However I when I do check the power system draw , as I clearly understand step 1.1,1.2 and 1.3 sent by MrHappy.



when it says UNSET meaning the Alarm in unset mode, but it will have the Ac power and 12volt battery connected to the control panel.So I will have to invoke bell otherwise the Alarm will trigger off. This is step 2 to 9.



Step 3 Generate full alarm condition meaning the alarm needs to be triggered to check the power supply in Alarm control panel.



step 2 to 9 when I do check it will have the control panel cover off and it will have the Ac voltage and battery connected. But the Alarm bell will need to invoke except for step 3.



please confirm my understanding is correct.



much appreciated for your replies.





Edited by CARETAKER46
Link to comment
Share on other sites

Join the conversation

You can post now and register later. If you have an account, sign in now to post with your account.

Guest
Reply to this topic...

×   Pasted as rich text.   Paste as plain text instead

  Only 75 emoji are allowed.

×   Your link has been automatically embedded.   Display as a link instead

×   Your previous content has been restored.   Clear editor

×   You cannot paste images directly. Upload or insert images from URL.

  • Recently Browsing   0 members

    • No registered users viewing this page.
×
×
  • Create New...

Important Information

By using this site, you agree to our Terms of Use.
